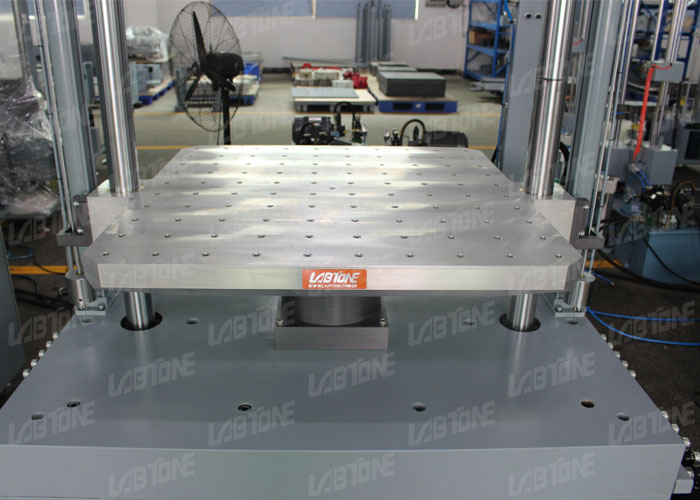

200KG Half Sine Shock Test Equipment For Consumer Electronics Impact Testing
|Max Specimen Weight||200kg|
|Max Acceleration(Half Sine)||500G|
|Pulse Duration(Half Sine)||30-2ms|
|Controller Cabinet Dimension||W55*D50*H80(cm)|
|Power Supply||3PH AC380v±10% 50Hz|
Applicable Standards: GB/T2423-2008;GJB1217;GJB360.23;GJB150;GJB548;MIL-STD-202F;IEC-68-2-27;MIL-STD-883E;MIL-STD-810F;ISTA;UL.
Applicable Industries: Suitable shock test for aviation,aerospace,marine,military,consumer electronics,automobiles,home appliances and display devices.
- convenient touch screen operation;
- complete safety protection systems;
- utilize pneumohydraulic booster and braking systems to prevent multiple impact;
- with air spring shock absorber and hydraulic shock damping mechanism,there will be no influence of impact on the surrounding and no foundation requirement.
The Application of Shock Test:
Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging.Regardless whether you want to do a boundary assessment on complete product breakage, industrial standard shock pulse or company's internal standards, we can provide the most advanced shock test systems to meet your application requirements.
Suitable shock test for aviation,aerospace,marine,military,consumer electronics,automobiles,home appliances and display devices.
By selecting different waveform generator, can perform:half sinusoidal wave, sawtooth wave, trapezoidal wave.
How do you attach the hardware you’re testing to your shaker?
By means of a fixture, usually aluminum or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.
How do you control shakers?
If we’re looking for resonances in the product we’re testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies.But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously.Control commands go into the keyboard of a specially-programmed computer.
What are those resonances?Are they bad?
Have you ever noticed the steering wheel moving with rather large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There’s a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure.When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.
